Product Introduction

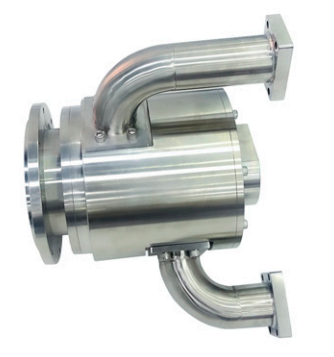

This product is primarily used in radar turntables to facilitate the supply and recovery of coolant between the radar ground equipment and radar antenna array equipment, ensuring the circulation of coolant.

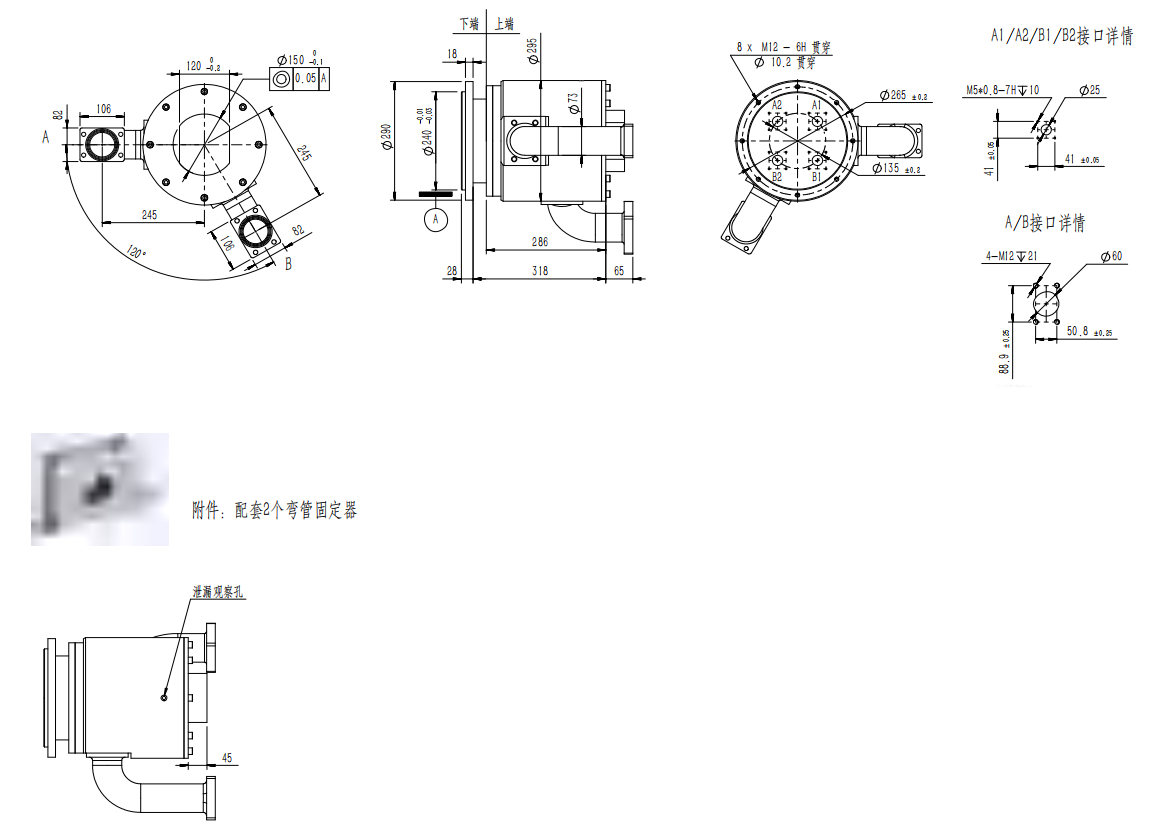

The upper end has two φ60 diameter interfaces, A/B, and the lower end has four φ25 diameter interfaces, A1/A2/B1/B2. The
upper end's A interface is connected to the lower end's A1/A2 interfaces, and the upper end's B interface is connected to the lower end's B1/B2 interfaces.
|
Indicator Name |
Values |
|
Flow Resistance |
≤ 0.1MPa (Bidirectional) |
|
Operating Temperature |
-40℃～ +65℃ |
|
Storage Temperature |
-45℃～ +70℃ |
|
Weight |
≤150Kg |
|
Rotation Speed |
0 ～ 100rpm |
|
Rotation Life |
≥ 5 million revolutions |
|
Torque |
≤120Nm |
|
Exterior Appearance |
Exposed sharp corners with rounded edges |
|
Accessories |
Includes 2 Matching Fixed Devices |
Main Technical Performance
Note: The product has inlet and outlet markings. The lower end is marked A1/A2/B1/B2, and the upper end is marked
A/B. The font height of the markings is ≥ 5mm.
