Product Introduction

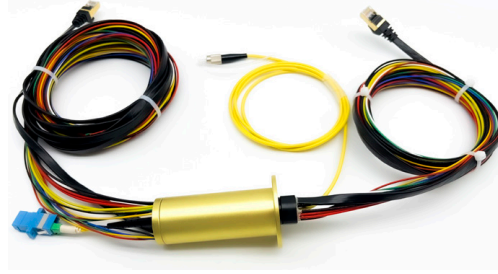

This slip ring module is modular in design, with 1-30 electrical circuits and 1 optical circuit. It has a compact design, with a main body diameter of only 36mm, making it easy to install. It can transmit both optical and electrical signals, making it suitable for harsh environments. It has a precious metal friction pair, ensuring a long service life.
Main Technical Performance
|
Electrical parameters |
|||
|
Loop number |
1 ～ 30 |
Contact resistance fluctuation value |
≤ 20mΩ |
|
Operating current |
5A or higher |
Electrical contact material |
Precious metals |
|
Operating voltage |
220VAC |
Shell material. |
Aluminum alloy |
|
Insulation resistance |
≥500MΩ@500VDC |
Wire specifications. |
AWG21 PTFE wire |
|
Dielectric strength |
500VAC@50Hz，60s |
Length of the conductor |
Rotor 500mm / Stator 500mm or as specified by the customer |
|
Optical parameters |
|||
|
Number of paths. |
1 |
Maximum optical power. |
0.5W |
|
Fiber optic type |
Single mode or multimode |
Fiber optic package |
2.0 Armor |
|
Work wavelength |
1310nm/1550nm (single mode) 850nm (multimode) |
Connector type. |
FC/SC/LC/ST |
|
Insertion loss |
≤2.0dB |
End face type. |
PC/UPC/APC |
|
Change in insertion loss |
≤0.5dB |
Fiber optic length. |
Rotor 500mm / Stator 500mm or as specified by the customer |
|
Return loss. |
≥ 40dB (single mode) ≥ 20dB (multi mode) |
|
|
|
Mechanical parameters |
|||
|
Operating temperature |
-30℃ ～ 80℃ or as specified by the customer. |
||
|
Storage temperature |
-35℃ ～ 85℃ or as specified by the customer |
||
|
Work humidity |
≤ 80% RH |
||
|
Protection level |
IP54 or customer specified |
||
|
Work speed |
0 ～ 200rpm |
||
|
Working life. |
≤ 10 million rotations |
||

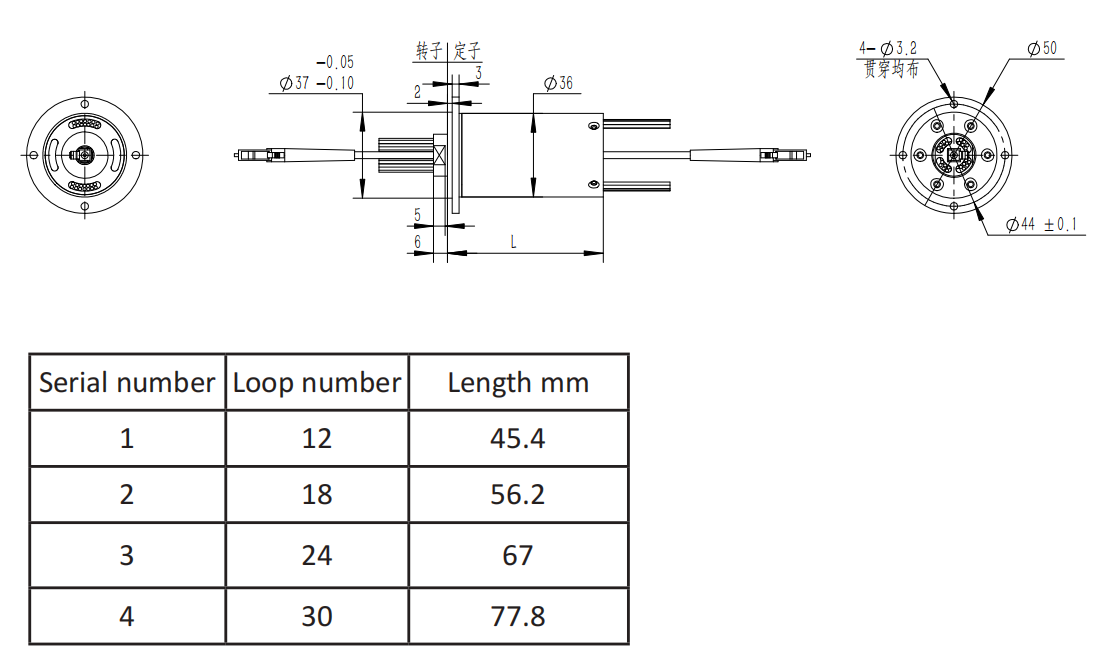

HXZ-36-mX1G Dimensions
