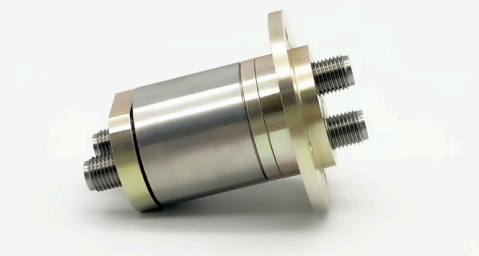

Product Introduction
Operating frequency: DC-5GHz / DC-5GHz, with SMA-F connectors on both ends.Channel 1: VSWR ≤ 1.3, insertion loss ≤ 0.3dB. Channel 2: VSWR ≤ 1.5, insertion loss ≤ 0.5dB.Channel isolation ≥ 50dB, operating temperature -40 ℃ to +75 ℃ , maximum speed 60rpm, service life ≥ 5 million revolutions. The installation diameter is only 22mm, which is over 30% smaller than conventional sizes, helping to reduce the overall size of the combined product.
Main Technical Performance
|
Product Specification |
||||
|
Model |
CH1 |
CH2 |
Starting Torque |
0.05Nm@room temperature |
|
Interface Type |
SMA-F(50Ω) |
SMA-F(50Ω) |
Continuous Rotation Torque |
0.05Nm@room temperature |
|
Type |
Ⅰ |
Ⅰ |
Maximum Speed |
60rpm |
|
Operating Frequency |
DC-5GHz |
DC-5GHz |
Minimum Operating Life |
10 million rotations |
|
Peak Power |
1000W |
1000W |
Housing Material |
Aluminum Alloy |
|
Average Power |
Surface Treatment |
Conductive Oxidation |
||
|
Voltage Standing Wave Ratio, maximum |
1.3 |
1.5 |
Approximate Weight |
60g |
|
Voltage Standing Wave Ratio maximum fluctuation |
0.05 |
0.1 |
Protection Class |
IP51 |
|
Insertion Loss, maximum |
0.3db |
0.5db |
Operating Temperature |
-40℃～ +75℃ |
|
Insertion Loss maximum fluctuation |
0.1db |
0.15db |
Storage Temperature |
-45℃～ +80℃ |
|
Phase Variation, maximum |
0.5° |
2° |
Maximum Relative Humidity in Operating Environment |
≤95%RH |
|
Isolation Degree, minimum |
50dB |
Maximum Relative Humidity in Storage Environment |
≤95%RH |
|

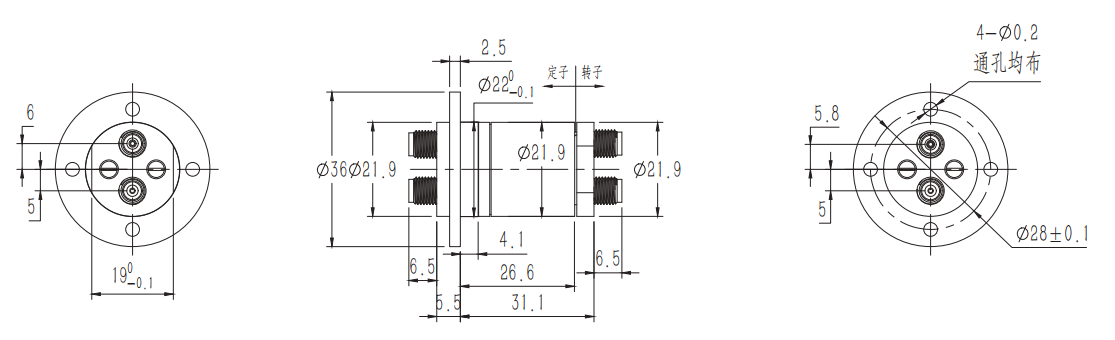

SRF-201-M Dimensions
