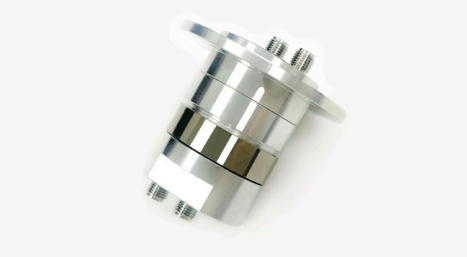

Product Introduction
Working frequency: DC-4.5GHz/DC-4.5GHz, with SMA-F interface on both ends. Channel 1: standing wave ratio ≤1.2, insertion loss ≤0.25dB.Channel 2: standing wave ratio ≤1.5, insertion loss ≤0.3dB. Channel isolation ≥50dB, working temperature -45℃ ～ +70℃ .Maximum rotation speed: 60rpm, working life ≥5 million revolutions. Installation diameter: 32mm, convenient for integration and assembly with conductive slip rings.
Main Technical Performance
|
Product Specification |
||||
|
Model |
CH1 |
CH2 |
Starting Torque |
0.05Nm@room temperature |
|
Interface Type |
SMA-F(50Ω) |
SMA-F(50Ω) |
Continuous Rotation Torque |
0.05Nm@room temperature |
|
Type |
Ⅰ |
Ⅰ |
Maximum Speed |
60rpm |
|
Operating Frequency |
DC-4.5GHz |
DC-4.5GHz |
Minimum Operating Life |
10 million rotations |
|
Peak Power |
1500W |
1500W |
Housing Material |
Aluminum Alloy |
|
Average Power |
Surface Treatment |
Conductive Oxidation |
||
|
Voltage Standing Wave Ratio, maximum |
1.2 |
1.5 |
Approximate Weight |
130g |
|
Voltage Standing Wave Ratio maximum fluctuation |
0.05 |
0.2 |
Protection Class |
IP51 |
|
Insertion Loss, maximum |
0.25dB |
0.3dB |
Operating Temperature |
-40℃～ +75℃ |
|
Insertion Loss maximum fluctuation |
0.05dB |
0.15dB |
Storage Temperature |
-45℃～ +80℃ |
|
Phase Variation, maximum |
0.5° |
2° |
Maximum Relative Humidity in Operating Environment |
≤95%RH |
|
Isolation Degree, minimum |
50dB |
Maximum Relative Humidity in Storage Environment |
≤95%RH |
|

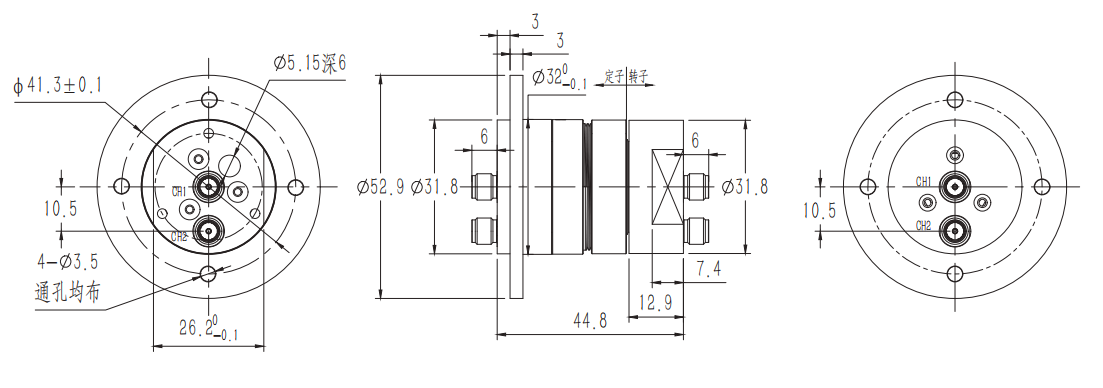

SRF-201 Dimensions
