Product Introduction

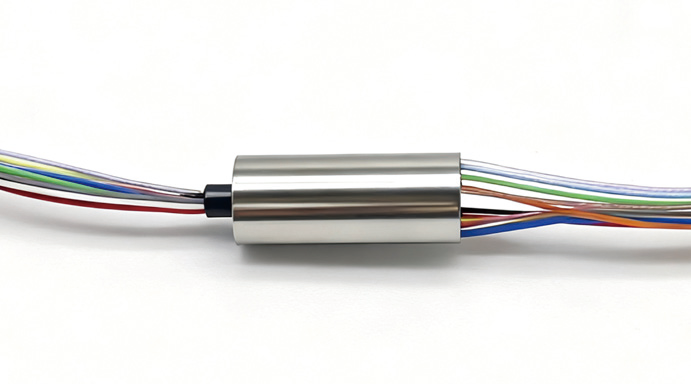

This slip ring features a modular design with 4 to 12 circuits. It has a compact structure with a main body diameter of only 6.5mm, making it easy to install and suitable for harsh environments. The use of precious metal friction pairs ensures a long service life.
Main Technical Performance
|
Specifications Sheet |
|||
|
Model |
Circuits |
Length |
Main Body Outer Diameter |
|
HXZ-6-4X |
4 |
8 |
6.5 |
|
HXZ-6-6X |
6 |
10 |
6.5 |
|
HXZ-6-8X |
8 |
11.8 |
6.5 |
|
HXZ-6.5-12X |
12 |
15.6 |
6.5 |
|
Conductive Parameters |
|||
|
Operating Voltage |
48V AC/DC |
||
|
Contact Resistance Variation |
≤15mΩ(at 50rpm) |
||
|
Dielectric Strength |
≥100VAC@50Hz |
||
|
Insulation Resistance |
≥100MΩ@100VDC |
||
|
Wire Length |
Rotor:250±5mm Stator:250±5mm |
||
|
Mechanical Parameters |
|||
|
Operating Temperature |
-20℃～ +65℃ |
||
|
Operating Humidity |
≤60%RH |
||
|
Protection Level |
IP40 |
||
|
Operating Speed |
0 ～ 100rpm |
||
|
Service Life |
≥1 million revolutions |
||
|
Conductive Contact Material |
Precious metals |
||
|
Housing Material |
Stainless steel |
||
|
Other Requirements |
Full inspection |
||
|
Wire Specifications and Color Code Table |
|||||||
|
Model |
Wire Specifications |
Color Code |
|||||
|
HXZ-6.5-4X |
Ø0.5-AWG30 silver-plated Teflon wires |
1. Black |
2. Brown |
3. Red |
4. Orange |
|
|
|
HXZ-6.5-6X |
Ø0.5-AWG30 silver-plated Teflon wires |
1. Black |
2. Brown |
3. Red |
4. Orange |
5. Yellow |
6. Green |
|
HXZ-6.5-8X |
Ø0.5-AWG30 silver-plated Teflon wires |
1. Black |
2. Brown |
3. Red |
4. Orange |
5. Yellow |
6. Green |
|
7. Blue |
8. Purple |
|
|
|
|
||
|
HXZ-6.5-12X |
Ø0.4-AWG32 silver-plated Teflon wires |
1. Black |
2. Brown |
3. Red |
4. Orange |
5. Yellow |
6. Green |
|
7. Blue |
8. Purple |
9. Gray |
10. White |
11. Light Red |
12. Light Blue |
||

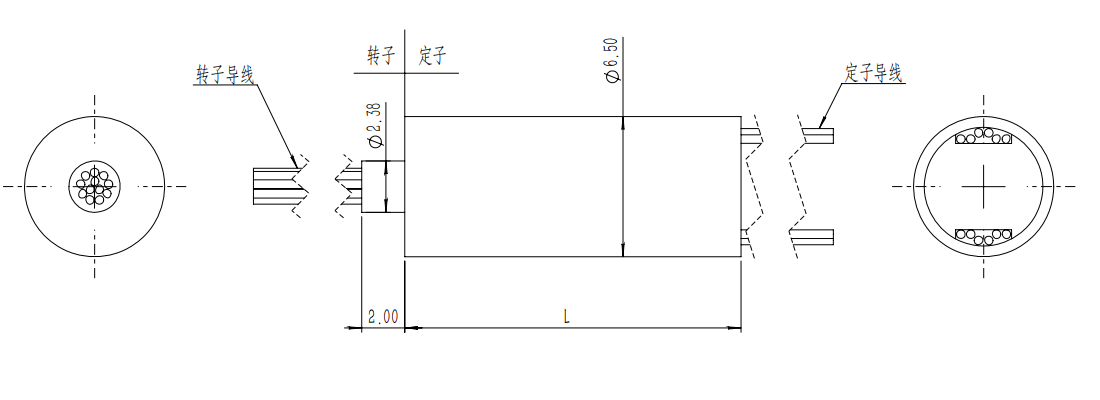

HXZ-6.5 Dimensions
