Product Introduction

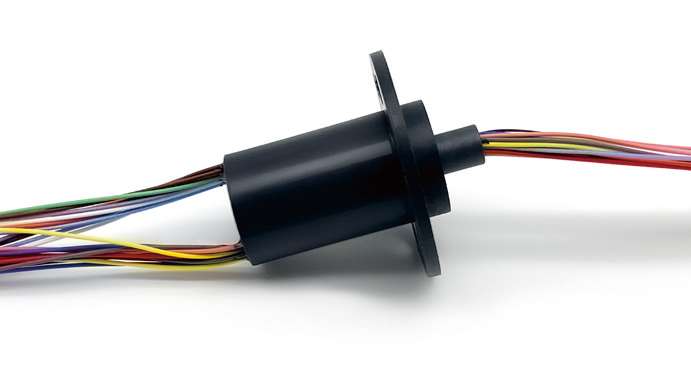

This slip ring features a modular design with 6~36 circuits. It has a compact structure with a main body diameter of only 22 mm, making it easy to install and suitable for harsh environments. The use of precious metal friction pairs ensures a long service life.
Main Technical Performance
|
Specifications Sheet |
|||
|
Model |
Circuits |
Length |
Main Body Outer Diameter |
|
HXZ-22-6X |
6 |
17 |
22 |
|
HXZ-22-12X |
12 |
24.5 |
22 |
|
HXZ-22-18X |
18 |
31.9 |
22 |
|
HXZ-22-24X |
24 |
39.6 |
22 |
|
HXZ-22-30X |
30 |
47 |
22 |
|
HXZ-22-36X |
36 |
54.5 |
22 |
|
Conductive Parameters |
|||
|
Operating Voltage |
0 ～ 240V AC/DC |
||
|
Contact Resistance Variation |
≤35mΩ(at 50rpm) |
||
|
Dielectric Strength |
≥500VAC@50Hz |
||
|
Insulation Resistance |
≥1000MΩ@500VDC |
||
|
Wire Length |
Rotor:250±5mm Stator:250±5mm |
||
|
Mechanical Parameters |
|||
|
Operating Temperature |
-20℃～ +80℃ |
||
|
Operating Humidity |
≤60%RH |
||
|
Protection Level |
IP40 |
||
|
Operating Speed |
0 ～ 300rpm |
||
|
Service Life |
≥ 5 million revolutions |
||
|
Conductive Contact Material |
Precious metals |
||
|
Housing Material |
Engineering plastics |
||
|
Other Requirements |
Full inspection |
||
