Product Introduction

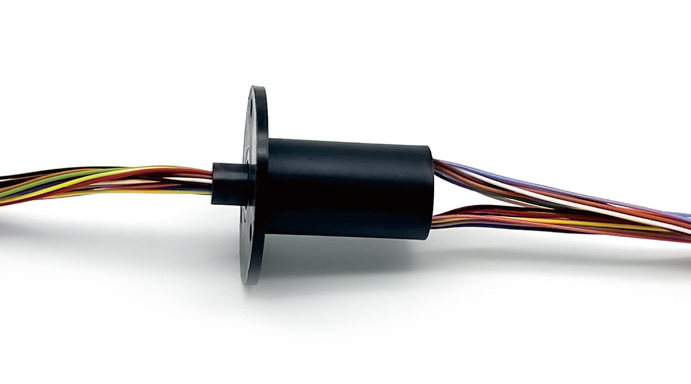

This slip ring features a modular design with 24/30 circuits. It has a compact structure with a main body diameter of only 15.5 mm, making it easy to install and suitable for harsh environments. The use of precious metal friction pairs ensures a long service life.
|
Specifications Sheet |
|||
|
Model |
Circuits |
Length |
Main Body Outer Diameter |
|
HXZ-15.5-24X |
24 |
31.5 |
15.5 |
|
HXZ-15.5-30X |
30 |
37.5 |
15.5 |
|
Conductive Parameters |
|||
|
Operating Voltage |
110V AC/DC |
||
|
Contact Resistance Variation |
≤35mΩ(at 50rpm) |
||
|
Dielectric Strength |
≥200VAC@50Hz |
||
|
Insulation Resistance |
≥100MΩ@200VDC |
||
|
Wire Specifications |
Ø0.65-AWG28 silver-plated Teflon wires |
||
|
Wire Length |
Rotor:250±5mm Stator:250±5mm |
||
|
Mechanical Parameters |
|||
|
Operating Temperature |
-20℃～ +65℃ |
||
|
Operating Humidity |
≤60%RH |
||
|
Protection Level |
IP40 |
||
|
Operating Speed |
0 ～ 300rpm |
||
|
Service Life |
≥ 5 million revolutions |
||
|
Conductive Contact Material |
Precious metals |
||
|
Housing Material |
Engineering plastics |
||
|
Other Requirements |
Full inspection |
||
|
Wire Specifications and Color Code Table |
||||||
|
Model |
Color Code |
|||||
|
HXZ-15.5-24X |
1. Black |
2. Brown |
3. Red |
4. Orange |
5. Yellow |
6. Green |
|
7. Blue |
8. Purple |
9. Gray |
10. White |
11. Light Red |
12. Light Blue |
|
|
13.Black |
14. Brown |
15. Red |
16. Orange |
17. Yellow |
18. Green |
|
|
19. Blue |
20. Purple |
21. Gray |
22. White |
23. Light Red |
24. Light Blue |
|
|
HXZ-15.5-30X |
1. Black |
2. Brown |
3. Red |
4. Orange |
5. Yellow |
6. Green |
|
7. Blue |
8. Purple |
9. Gray |
10. White |
11. Light Red |
12. Light Blue |
|
|
13.Black |
14. Brown |
15. Red |
16. Orange |
17. Yellow |
18. Green |
|
|
19. Blue |
20. Purple |
21. Gray |
22. White |
23. Light Red |
24. Light Blue |
|
|
25. Black |
26. Brown |
27. Red |
28.Orange |
29. Yellow |
30. Green |
|
Main Technical Performance

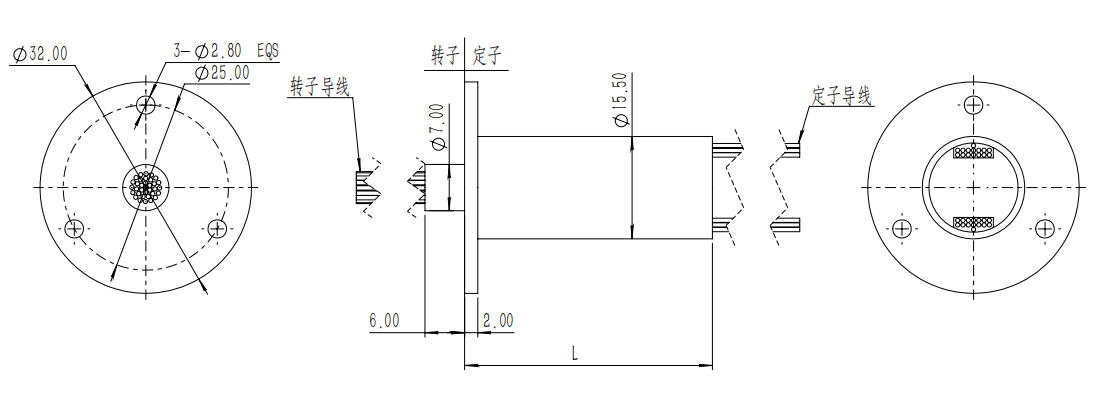

HXZ-15.5 Dimensions
