Product Introduction

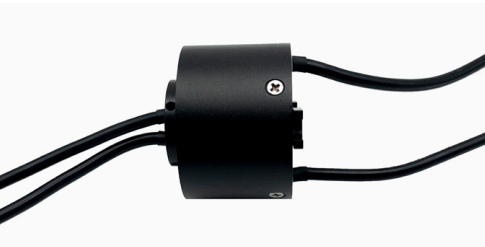

This slip ring features a modular design with 2 circuits, including 2 power circuits rated at 30A. It has a compact structure with a length of 38mm, secured by a 12mm wide stop ring for integrated installation.
This product is primarily used in tethered drones, characterized by its simple installation and short production cycle.
|
Specifications Sheet |
|||
|
Model |
Circuits |
Length |
Main Body Outer Diameter |
|
HXZ-56-2D |
2 |
43.7 |
55.9 |
|
Conductive Parameters |
|||
|
Operating Voltage |
0-1000VAC/DC |
||
|
Operating Current |
30A |
||
|
Electrical Noise |
≤5mΩ@6VDC,50mA(at 250rpm) |
||
|
Contact Resistance Variation |
≤10mΩ |
||
|
Dielectric Strength |
1800VAC@50Hz，60s |
||
|
Insulation Resistance |
500MΩ/1000V/DCDC |
||
|
Wire Specifications |
4mm² Silicone Rubber Wire |
||
|
Wire Length |
Stator 300mm ；Rotor 300mm |
||
|
Mechanical Parameters |
|||
|
Operating Temperature |
-40℃～ +55℃ |
||
|
Operating Speed |
0 ～ 250rpm |
||
|
Service Life |
≥1 million revolutions |
||
|
Protection Class |
IP51 |
||
|
Conductive Contact Material |
Precious metals |
||
|
Housing Material |
Aluminum alloy + engineering plastics |
||
