Product Introduction

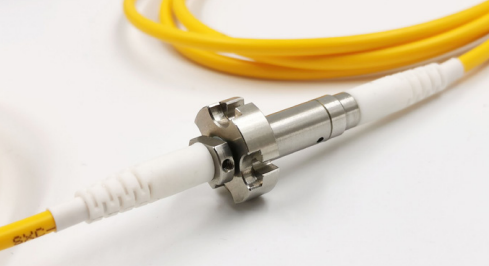

The FRSD is a miniature single-channel Fiber Optic Rotary Joint, with an installation diameter of only 6.8mm, making it a relatively compact product. It is especially suitable for scenarios with limited installation space.
The FRSD can be configured with single-mode or multimode fiber, offering excellent optical performance, and is also waterproof and dust-proof.
Elements Required for Ordering
FRSD①-②-③-④-⑤-⑥/⑦
|
①Channel |
②Fiber Type |
③Operating Wavelength |
Tail Fiber |
|
1 |
9/125(single-mode) 50/125(multi-mode) 62.5/125(multi-mode) |
850 1310 1550 |
④Tail Fiber: length 1.2m, S (customer specified) ⑤Package: Φ0.6mm, Φ2mm, Φ3mm, K= armor-clad ⑥Connector Type: FC, ST, SC, LC, N= no connector ⑦End Face Type: PC (flat), APC (angled) |
Example：FRSD-9/125-1310-1m-Φ3.0-FC/PC
|
Indicator Name |
Value |
|
Operating Wavelength |
1310/1550(SM)；850/1310(MM) |
|
Insertion Loss (Room Temperature) |
≤1.5dB |
|
Insertion Loss Fluctuation |
≤0.7dB |
|
Return Loss |
≥40dB(SM) |
|
Power Handling |
≤23dBm |
|
Tensile Strength |
≤12N |
|
Rotational Speed |
0 ～ 2000rpm |
|
Service life |
> 200 million rotations |
|
Operating Temperature |
-20 ～ 60℃ (-40 ～ 85℃ optional) |
|
Storage Temperature |
-50 ～ 85℃ |
|
Weight (excluding tail cable and connector) |
15g |
|
Vibration and Impact Standard |
GJB150 Land Mobile |
|
Protection Class |
IP54(IP65、IP67 optional) |
Main Technical Performance
