Product Introduction

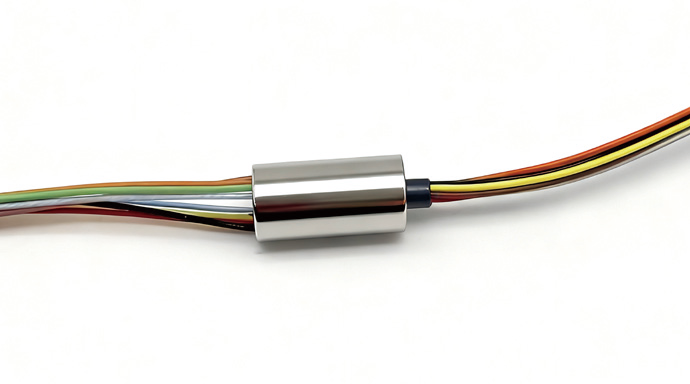

This slip ring features a modular design with 4 to 8 circuits. It has a compact structure with a main body diameter of only 6mm, making it easy to install and suitable for harsh environments. The use of precious metal friction pairs ensures a long service life.
|
Specifications Sheet |
|||
|
Model |
Circuits |
Length |
Main Body Outer Diameter |
|
HXZ-6-4X |
4 |
8 |
6 |
|
HXZ-6-6X |
6 |
10 |
6 |
|
HXZ-6-8X |
8 |
11.8 |
6 |
|
Conductive Parameters |
|||
|
Operating Voltage |
48V AC/DC |
||
|
Contact Resistance Variation |
≤15mΩ(at 50rpm) |
||
|
Dielectric Strength |
≥100VAC@50Hz |
||
|
Insulation Resistance |
≥100MΩ@100VDC |
||
|
Wire Specifications |
Ø0.5-AWG30 silver-plated Teflon wires |
||
|
Wire Length |
Rotor:250±5mm Stator:250±5mm |
||
|
Mechanical Parameters |
|||
|
Operating Temperature |
-20℃～ +65℃ |
||
|
Operating Humidity |
≤60%RH |
||
|
Protection Level |
IP40 |
||
|
Operating Speed |
0 ～ 100rpm |
||
|
Service Life |
≥1 million revolutions |
||
|
Conductive Contact Material |
Precious metals |
||
|
Housing Material |
Stainless steel |
||
|
Other Requirements |
Full inspection |
||
Main Technical Performance
|
Wire Specifications and Color Code Table |
||||||
|
Model |
Color Code |
|||||
|
HXZ-6-4X |
1.Black |
2.Brown |
3.Red |
4.Orange |
|
|
|
HXZ-6-6X |
1.Black |
2.Brown |
3.Red |
4.Orange |
5.Yellow |
6.Green |
|
HXZ-6-8X |
1.Black |
2.Brown |
3.Red |
4.Orange |
5.Yellow |
6.Green |
|
7.Blue |
8.Purple |
|
|
|
|
|

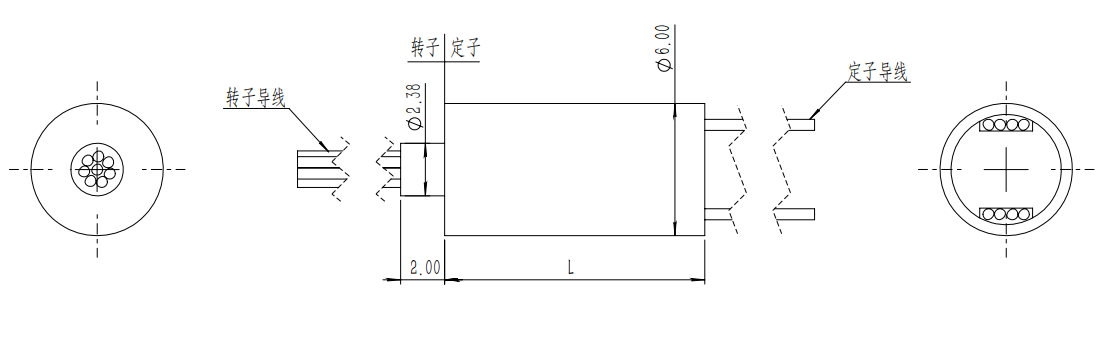

HXZ-6 Dimensions
