Product Introduction

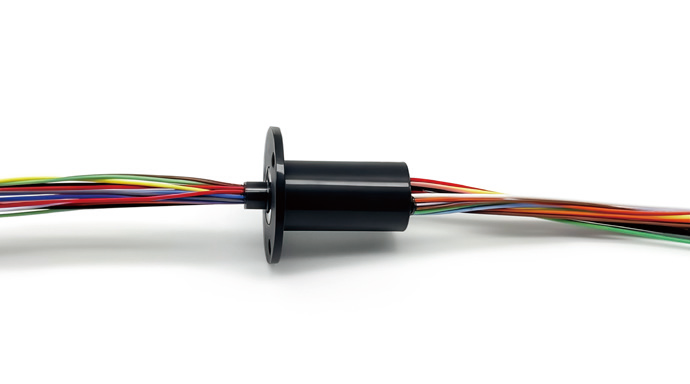

This slip ring features a modular design with 4 to 18 circuits. It has a compact structure with a main body diameter of only 12.4 mm, making it easy to install and suitable for harsh environments. The use of precious metal friction pairs ensures a long service life.
Main Technical Performance
|
Specifications Sheet |
||||||
|
Model |
Circuits |
Voltage |
Dielectric Strength |
Insulation Resistance |
Length |
Main Body Outer Diameter |
|
HXZ-12.4-4X |
4 |
240V AC/DC |
≥500VAC@50Hz |
≥100MΩ@500VDC |
11 |
12.4 |
|
HXZ-12.4-6X |
6 |
240V AC/DC |
≥500VAC@50Hz |
≥100MΩ@500VDC |
13.2 |
12.4 |
|
HXZ-12.4-8X |
8 |
240V AC/DC |
≥500VAC@50Hz |
≥100MΩ@500VDC |
15.4 |
12.4 |
|
HXZ-12.4-12X |
12 |
240V AC/DC |
≥500VAC@50Hz |
≥100MΩ@500VDC |
19.8 |
12.4 |
|
HXZ-12.4-18X |
18 |
110V AC/DC |
≥200VAC@50Hz |
≥100MΩ@200VDC |
23.9 |
12.4 |
|
Conductive Parameters |
||||||
|
Contact Resistance Variation |
≤35mΩ(at 50rpm) |
|||||
|
Wire Specifications |
Ø0.65-AWG28 silver-plated Teflon wires |
|||||
|
Wire Length |
Rotor:250±5mm Stator:250±5mm |
|||||
|
Mechanical Parameters |
||||||
|
Operating Temperature |
-20℃～ +65℃ |
|||||
|
Operating Humidity |
≤60%RH |
|||||
|
Protection Level |
IP40 |
|||||
|
Operating Speed |
0 ～ 300rpm |
|||||
|
Service Life |
≥5 million revolutions |
|||||
|
Conductive Contact Material |
Precious metals |
|||||
|
Housing Material |
Engineering plastics |
|||||
|
Other Requirements |
Full inspection |
|||||
|
Wire Specifications and Color Code Table |
||||||
|
Model |
Color Code |
|||||
|
HXZ-12.4-4X |
1.Black |
2.Brown |
3.Red |
4.Orange |
|
|
|
HXZ-12.4-6X |
1.Black |
2.Brown |
3.Red |
4.Orange |
5.Yellow |
6.Green |
|
HXZ-12.4-8X |
1.Black |
2.Brown |
3.Red |
4.Orange |
5.Yellow |
6.Green |
|
7.Blue |
8.Purple |
|
|
|
|
|
|
HXZ-12.4-12X |
1.Black |
2.Brown |
3.Red |
4.Orange |
5.Yellow |
6.Green |
|
7.Blue |
8.Purple |
9.Gray |
10.White |
11.Light Red |
12.Light Blue |
|
|
HXZ-12.4-18X |
1.Black |
2.Brown |
3.Red |
4.Orange |
5.Yellow |
6.Green |
|
7.Blue |
8.Purple |
9.Gray |
10.White |
11.Light Red |
12.Light Blue |
|
|
13.Black |
14.Brown |
15.Red |
16.Orange |
17.Yellow |
18.Green |
|

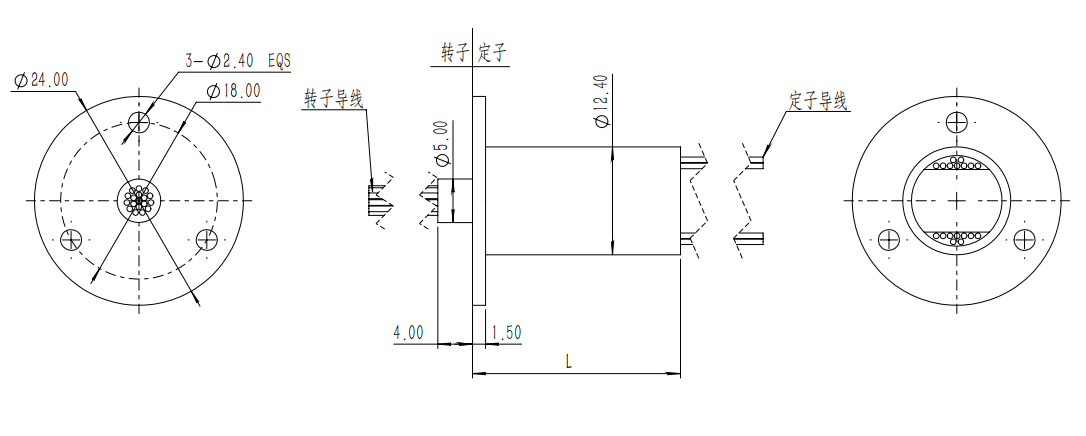

HXZ-12.4 Dimensions
