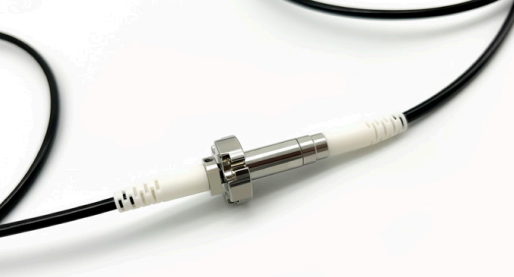

FRSHP Special Fiber Type Fiber Optic Rotary Joint can use large core diameter fibers such as 25/400, 105/125, 200/220, 800/1000 or other customer-specified fibers. fiber optic rotary joints made with these types of fibers can be used in applications that require high power transmission.
Elements Required for Ordering
FRSHP①-②-③-④-⑤-⑥/⑦
Example：FRSHPA-105/125-1064-1.2m-Φ3.0-FC/PC
|
①Channel |
②Fiber Type |
③Operating Wavelength |
Tail Fiber |
|
|
25/400(sparse model) |
850 |
④Tail Fiber: length 1.2m, S (customer specified) |
|
1 |
105/125(dense multi-modal model) |
1310 |
⑤Package: Φ0.9mm, Φ2mm, Φ3mm, K= armor-clad |
|
|
200/220(dense multi-modal model) 800/1000(dense multi-modal model) |
1550 |
⑥Connector Type: FC, ST, SC, LC, N= no connector ⑦End Face Type: PC (flat), APC (angled) |
Main Technical Performance
|
Indicator Name |
Value |
|
Bandwidth |
±50nm |
|
Wavelength Range |
650 ～ 1650nm |
|
Insertion Loss (Room Temperature) |
≤2.0dB |
|
Insertion Loss Fluctuation |
≤1.0dB |
|
Return Loss |
≥30dB |
|
Tensile Strength |
≤12N |
|
Rotation Speed |
0 ～ 1000rpm |
|
Estimated Lifetime |
200 million rpm |
|
Operating Temperature |
-20 ～ 60℃ (-40 ～ 85℃ optional) |
|
Storage Temperature |
-50 ～ 85℃ |
|
Weight (excluding tail cable and connector) |
20g |
|
Vibration and Impact Standard |
GJB150 Land Mobile |
|
Protection Class |
IP54(IP65、IP67 optional) |

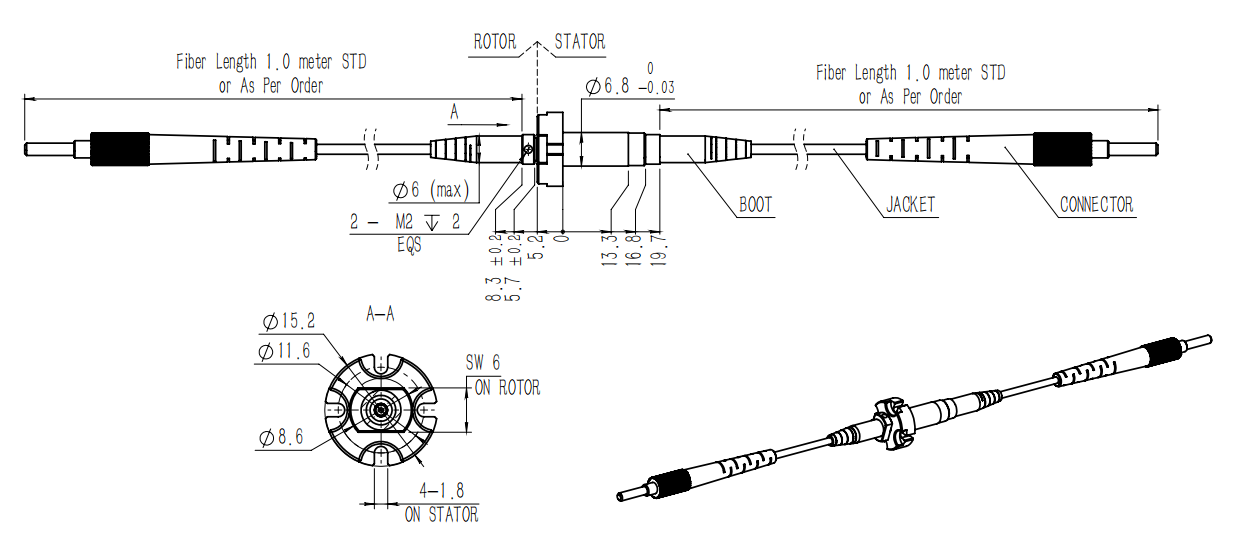

FRSHP Dimensions
