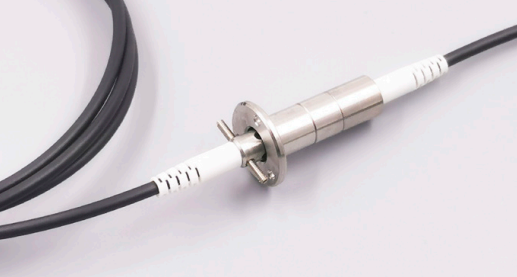

FRHS, a high-speed single-channel fiber optic rotaty joint, was launched in 2014, with a maximum speed of up to 25,000 revolutions per minute, and is widely used in medical and high- speed rotating platform fields. The product line includes two extended models, FRSHSB and FRSHSG, among which FRSHSB is a miniature slip ring with a bore diameter of only 10mm.
Elements Required for Ordering
FRHS①-②-③-④-⑤-⑥/⑦
Example：FRHSB-9/125-1550-1.2m-Φ3.0-FC/PC
|
①Model Type |
②Fiber Type |
③Operating Wavelength |
Tail Fiber |
|
B(miniature) G(Single-Sided Flange Port) |
9/125(single-mode) 50/125(multi-mode) 62.5/125(multi-mode) |
850 1310 1550 |
④Tail Fiber: length 1.2m, S (customer specified) ⑤Package: Φ0.9mm, Φ2mm, Φ3mm, K= armor-clad ⑥Connector Type: FC, ST, SC, LC, N= no connector ⑦End Face Type: PC (flat), APC (angled) |
Main Technical Performance
|
Indicator Name |
Value |
|
Bandwidth |
±50nm |
|
Wavelength |
1310/1550(SM)；850/1310(MM) |
|
Insertion Loss (Room Temperature) |
≤1.5dB |
|
Insertion Loss Fluctuation |
≤0.7dB |
|
Return Loss |
≥40dB(SM) |
|
Power Handling |
≤23dBm |
|
Tensile Strength |
≤12N |
|
Rotation Speed |
2000 rpm(higher speed customization available) |
|
Estimated Lifetime |
500 million rpm |
|
Operating Temperature |
-20 ～ 60℃ (-40 ～ 85℃ optional) |
|
Storage Temperature |
-45 ～ 85℃ |
|
Weight (excluding tail cable and connector) |
25g(FRHSB)；135g(FRHSG) |
|
Vibration and Impact Standard |
GJB150 Land Mobile |
|
Protection Class |
IP54 |

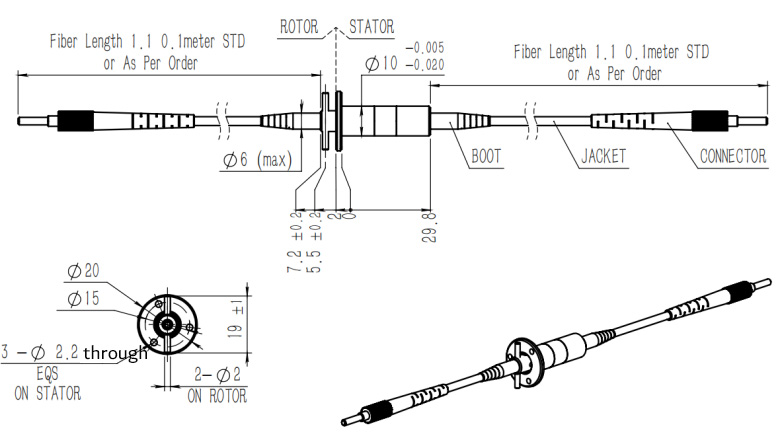

FRHSB Dimensions

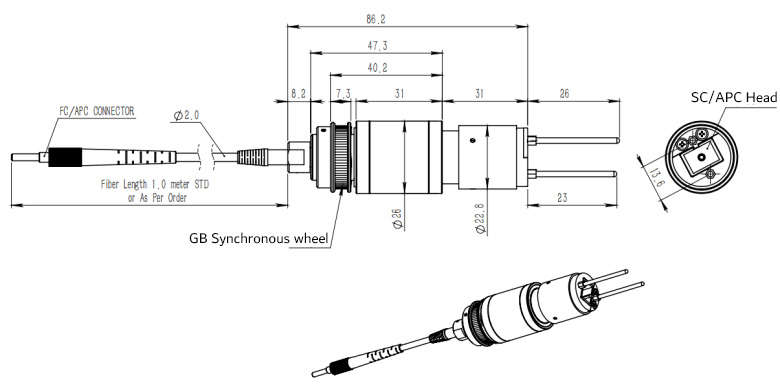

FRHSG Dimensions
